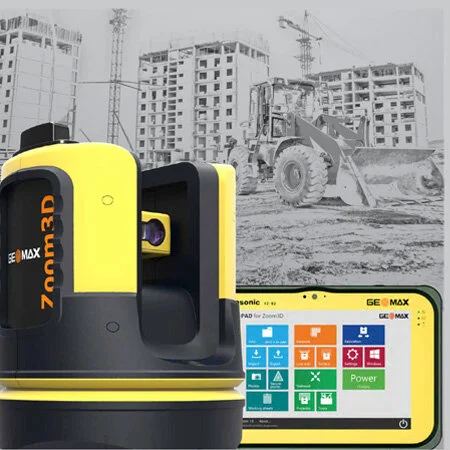

GeoMax Zoom3D Micro Robotic Solution
Easy-to-use and fast 3D measuring instruments, the GeoMax Zoom3D Micro Robotic Solution is ideal for indoor as well as outdoor applications. Upgraded it to an innovative and user-friendly robotic total station: simply position it and turn, the Zoom3D will measure and layout any project site.
With very simple configuration and equipped with an auto levelling feature, the Zoom3D is a plug-and-play solution that speeds up your daily tasks. Its user-friendly onboard software helps with a wide range of indoor applications such as measuring, setting out or plumbing points. Levelling can now be completed with greater ease and speed, then exported in most common file formats.
For your outdoor tasks, the Micro Robotic Solution is equipped with target recognition technology that automatically and easily centres and follows the target, allowing surveys and stakeouts in small construction sites.
Get Started With Two Buttons:
1. Place your Zoom3D on the floor or on the tripod
2. Turn it on. The Zoom3D automatically levels
3. Connect it to your datalogger and start working!
Easy-to-use and fast 3D measuring instruments, the GeoMax Zoom3D Micro Robotic Solution is ideal for indoor as well as outdoor applications. Upgraded it to an innovative and user-friendly robotic total station: simply position it and turn, the Zoom3D will measure and layout any project site.
With very simple configuration and equipped with an auto levelling feature, the Zoom3D is a plug-and-play solution that speeds up your daily tasks. Its user-friendly onboard software helps with a wide range of indoor applications such as measuring, setting out or plumbing points. Levelling can now be completed with greater ease and speed, then exported in most common file formats.
For your outdoor tasks, the Micro Robotic Solution is equipped with target recognition technology that automatically and easily centres and follows the target, allowing surveys and stakeouts in small construction sites.
Get Started With Two Buttons:
1. Place your Zoom3D on the floor or on the tripod
2. Turn it on. The Zoom3D automatically levels
3. Connect it to your datalogger and start working!
Easy-to-use and fast 3D measuring instruments, the GeoMax Zoom3D Micro Robotic Solution is ideal for indoor as well as outdoor applications. Upgraded it to an innovative and user-friendly robotic total station: simply position it and turn, the Zoom3D will measure and layout any project site.
With very simple configuration and equipped with an auto levelling feature, the Zoom3D is a plug-and-play solution that speeds up your daily tasks. Its user-friendly onboard software helps with a wide range of indoor applications such as measuring, setting out or plumbing points. Levelling can now be completed with greater ease and speed, then exported in most common file formats.
For your outdoor tasks, the Micro Robotic Solution is equipped with target recognition technology that automatically and easily centres and follows the target, allowing surveys and stakeouts in small construction sites.
Get Started With Two Buttons:
1. Place your Zoom3D on the floor or on the tripod
2. Turn it on. The Zoom3D automatically levels
3. Connect it to your datalogger and start working!
| SPECIFICATIONS: | |
| GONIOMETER | |
| Measurement range | Horizontal 360°; vertical 250° |
| Accuracy | 5˝, equates to 1.2 mm @ 50 m |
| LASER DISTANCE METER | |
| Type | Coaxial, visible red laser |
| Measurement range | 0.5 - 50 m |
| Laser class | 2 |
| Laser type | 650nm; < 1mW |
| ø laser dot (at distance) | 10 m: ~7 mm ×7 mm 30 m: ~9 mm ×15mm |
| TIE DISTANCE ACCURACY (3D) | |
| Angle and distance combination | @10 m @30 m @50 mApprox. 1 mm 2 mm 4 mm |
| TILT SENSOR | |
| Self-levelling range | ±3° |
| Accuracy | 10˝, equates to 2.5 mm @ 50 m |
| DIGITAL POINT FINDER | |
| Zoom (magnification) / Field of view (@ 10 m) | 1× / 3.40 m × 2.14 m 2× / 1.70 m × 1.07 m 4× / 0.85 m × 0.54 m 8× / 0.42 m × 0.27 m |
| CIRCULAR LEVEL SETTING | |
| Accuracy | 1°/mm |
| OPERATION | |
| Keys/user interface | 1 on /off button |
| Interfaces | USB type B, power supply power pack |
| COMMUNICATION | |
| Cable | USB: Micro-B USB and type a; WLAN |
| Wireless | 50m range ** |
| POWER SUPPLY | |
| Internal battery | Li-Ion battery 14.4 V / 63 Wh |
| External power | 24 VDC / 2.5A, charging time 8 h |
| Operating time | 8 h |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | Height 215.5 mm, ø 186.6 mm |
| Weight | 2.8 kg |
| Operating temp. | – 10°C to 50°C |
| Storage temp. | – 25°C to 70°C |
| Protection class | IP54 (IEC 60529) |
| Attachment | 5 ⁄ 8” thread |
| REMOTE CONTROL | |
| Range | 50 m ** |
| Communication | Infrared (IR) |
| Battery | 1 AA, 1.5 V |
