GeoMax Zenith06

$6,995.00

OFFER: 12 Months FREE SmartFix RTK subscription

The Zenith06 entry-level smart antenna, with X-Pad Ultimate Go, is a solution that offers both simplicity and accuracy while being cost-effective.

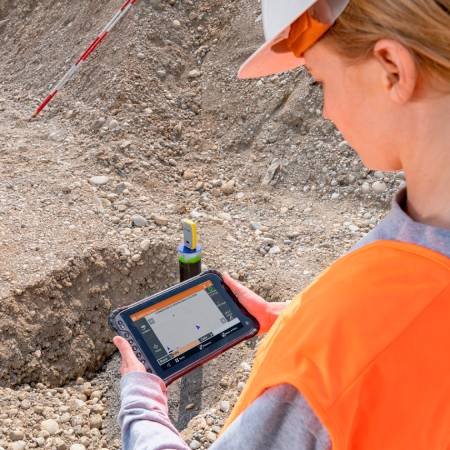

The Zenith06 is an ideal instrument for a full day's work out in the field. With its compact, lightweight design, the smart antenna is easy to use, making jobs such as utility surveying and road construction with hundreds of points across a large area so much more convenient.

X-PAD software, GeoMax field controllers and the Zenith06 GNSS are carefully chosen and developed to deliver a carefree and efficient workflow. This begins with the accelerated connection process thanks to the innovative and unique QR-iConnect functionality. Forget the times of tedious sensor search and selection by toggling through extensive device lists. Simply scan and go!

Package includes:

  • GeoMax Zenith06 GNSS Receiver

  • GPS, GLONASS, BeiDou, Galileo & QZSS

  • USB-C Charger

  • 1 Year X-Pad Ultimate GO Subscription

  • 1 year free SmartFix RTK Correction Service

  • Zenith06 Accessory Kit

  • ZPC200 Telescope Carbon Fibre and Aluminium pole

Quantity:
Add To Cart

OFFER: 12 Months FREE SmartFix RTK subscription

The Zenith06 entry-level smart antenna, with X-Pad Ultimate Go, is a solution that offers both simplicity and accuracy while being cost-effective.

The Zenith06 is an ideal instrument for a full day's work out in the field. With its compact, lightweight design, the smart antenna is easy to use, making jobs such as utility surveying and road construction with hundreds of points across a large area so much more convenient.

X-PAD software, GeoMax field controllers and the Zenith06 GNSS are carefully chosen and developed to deliver a carefree and efficient workflow. This begins with the accelerated connection process thanks to the innovative and unique QR-iConnect functionality. Forget the times of tedious sensor search and selection by toggling through extensive device lists. Simply scan and go!

Package includes:

  • GeoMax Zenith06 GNSS Receiver

  • GPS, GLONASS, BeiDou, Galileo & QZSS

  • USB-C Charger

  • 1 Year X-Pad Ultimate GO Subscription

  • 1 year free SmartFix RTK Correction Service

  • Zenith06 Accessory Kit

  • ZPC200 Telescope Carbon Fibre and Aluminium pole

OFFER: 12 Months FREE SmartFix RTK subscription

The Zenith06 entry-level smart antenna, with X-Pad Ultimate Go, is a solution that offers both simplicity and accuracy while being cost-effective.

The Zenith06 is an ideal instrument for a full day's work out in the field. With its compact, lightweight design, the smart antenna is easy to use, making jobs such as utility surveying and road construction with hundreds of points across a large area so much more convenient.

X-PAD software, GeoMax field controllers and the Zenith06 GNSS are carefully chosen and developed to deliver a carefree and efficient workflow. This begins with the accelerated connection process thanks to the innovative and unique QR-iConnect functionality. Forget the times of tedious sensor search and selection by toggling through extensive device lists. Simply scan and go!

Package includes:

  • GeoMax Zenith06 GNSS Receiver

  • GPS, GLONASS, BeiDou, Galileo & QZSS

  • USB-C Charger

  • 1 Year X-Pad Ultimate GO Subscription

  • 1 year free SmartFix RTK Correction Service

  • Zenith06 Accessory Kit

  • ZPC200 Telescope Carbon Fibre and Aluminium pole


SPECIFICATIONS:
RECEIVER SPECIFICATIONS
Measurement Engine 184 channels, dual-frequency, multi-constellation
GPS tracking L1 C/A, L2C
GLONASS tracking L1OF, L2OF
Galileo tracking E1 B/C, E5b
BeiDou tracking B1I, B2I
QZSS tracking L1 C/A, L2C
Positioning rate 10 Hz
RECEIVER ACCURACY AND PERFORMANCE *
RTK Hz: 2 cm + 1 ppm V: 3 cm + 1 ppm
Static Hz: 2 cm + 1 ppm V: 3 cm + 1 ppm
GNSS Initialisation Cold start: 24 sec Requisition: 2 sec
COMMUNICATION
4G LTE modem Available on Zenius controllers
Bluetooth® BT4.2 LE
Communication port USB Type C
RTK data protocols RTCM 3.0, RTCM 3.1, RTCM 3.2, RTCM 3.3, RTCM MSM
INTERFACES
Keyboard On/off button
LED status indicators Bluetooth, RTK, Position, Battery
PHYSICAL SPECIFICATIONS
Dimensions 139 mm x 80.6 mm x 30.6 mm
Weight 340 g
Operating temp. –40°C to +65°C
Environmental protection IP67 water- and dustproof
Humidity Rarely and slightly condensing. ISO 9022-12-04 (+65°C, 92%, 62h)
Vibration Withstands strong vibration. ISO 9022-36-03-0
Shock Withstands a 1.2 m drop onto a hard surface
POWER SUPPLY
Internal battery Li-Ion 3.8 V / 6.12 Ah
Operating time > 20 h

* Measurement precision, accuracy, reliability and time for initialisation are dependent upon various factors including number of satellites, observation time, atmospheric conditions, multipath etc. Figures quoted assume normal to favourable conditions. A full BeiDou and Galileo constellation will further increase measurement performance and accuracy.
