GeoMax Zeta125 Red Beam Pipe Laser
The various models of the Zeta125 Series give you the flexibility to choose a device that perfectly fits your construction needs. With the outstanding grade range from -10% to +40%, the Zeta125 series, delivers a solid performance making your work convenient and safer, every time.
The Zeta125 series provides superior levelling accuracy can easily be operated with a remote control and a laser receiver. These features help you achieve the best visibility in any working condition, at a distance of up to 200 meters. You can be confident that you will achieve maximum efficiency with the Zeta 125 pipe laser.
Package Includes:
Zeta 125 Pipe Laser
LDG125 Remote Control
Li-ion Battery & Charger
Target & Target Holder
NZ Calibration Certification
Shockwatch
5 Year Warranty
The various models of the Zeta125 Series give you the flexibility to choose a device that perfectly fits your construction needs. With the outstanding grade range from -10% to +40%, the Zeta125 series, delivers a solid performance making your work convenient and safer, every time.
The Zeta125 series provides superior levelling accuracy can easily be operated with a remote control and a laser receiver. These features help you achieve the best visibility in any working condition, at a distance of up to 200 meters. You can be confident that you will achieve maximum efficiency with the Zeta 125 pipe laser.
Package Includes:
Zeta 125 Pipe Laser
LDG125 Remote Control
Li-ion Battery & Charger
Target & Target Holder
NZ Calibration Certification
Shockwatch
5 Year Warranty
The various models of the Zeta125 Series give you the flexibility to choose a device that perfectly fits your construction needs. With the outstanding grade range from -10% to +40%, the Zeta125 series, delivers a solid performance making your work convenient and safer, every time.
The Zeta125 series provides superior levelling accuracy can easily be operated with a remote control and a laser receiver. These features help you achieve the best visibility in any working condition, at a distance of up to 200 meters. You can be confident that you will achieve maximum efficiency with the Zeta 125 pipe laser.
Package Includes:
Zeta 125 Pipe Laser
LDG125 Remote Control
Li-ion Battery & Charger
Target & Target Holder
NZ Calibration Certification
Shockwatch
5 Year Warranty

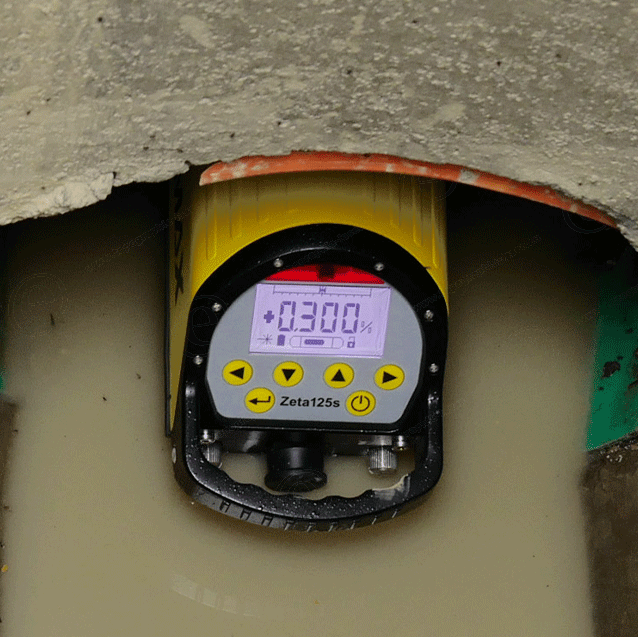

The Zeta125 pipe laser fits in tight bends and narrow manholes. Due to its slim housing, it is suitable for pipes with 125mm diameter. Thanks to its weight and rubber feet, Zeta125 lasers have a stable stand on any pipe material.
SPECIFICATIONS:
| Zeta125 | Zeta125S | |
| Self-levelling range | +40% to -15% | |
| Grade range | +40% to -10% | |
| Grade entry | Digit select | |
| Grade display | 0.001% | |
| Azimuth range | Total range 6 m at 30 m | |
| Accuracy | ±5 mm at 100 m, ± 10 arc sec.; ± .005% | |
| Temp drift | 1”/C arc seconds per degree C | |
| Cross axis levelling | Manual | Auto [6°] |
| Vertical level | No | Yes |
| Auto-target system | No | Yes |
| Manual alignment | No | Yes |
| Beam type/Output | Visible laser diode; 635nm; < 5mW; 2 class | |
| Protection class | IP68 | |
| Power supply | Rechargeable Li-Ion battery pack 110/230V AC converter (charge and run simultaneously), 12V power cord | |
| Battery life | 40 hours Li-Ion battery | |
| Thread mounting | 5/8" | |
| Operating temp | +50°C to -20°C (122°F to -4°F) | |
| Size & weight | 305 x 105 x 113mm, 2.07Kg | |
| Operating range | >300m | |
| Detection angle | 20° (12m / 40’ @30m / 100’) | |
| Rotation speed | 1250 rpm | |
| Scan length [Azimuth] | Narrow mode 1.5 m @ 30 m, Wide mode 3.2 m @ 30 m | |
| REMOTE CONTROL | ||
| Operating range | 190 m front through the pipe; 7.6 m from rear | |
| Batteries | 3 AA alkaline | |
| Dimensions | 119 x 60 x 30 mm | |
