GeoMax EZiCAT Cable Locator Accessories Basic Package
*includes GST
Save when you buy GeoMax EZICAT accessories together!
The GeoMax EZiCAT Accessories Basic Package is ideal for detecting disconnected underground utilities.

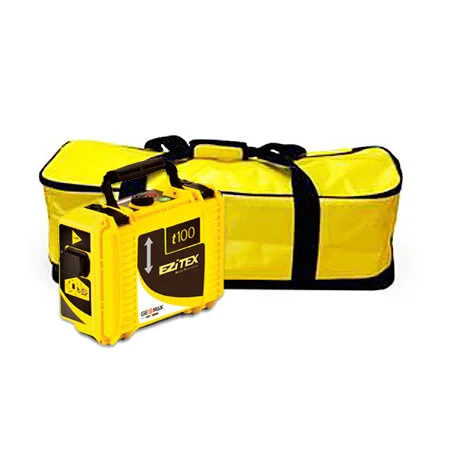

This package includes the GeoMax EZiTEX t100 Signal Transmitter and GeoMax EZiCAT carry bag which is specifically designed for easy transport of your locating system. The carry bag has compartments to carry a GeoMax Cable Locator, Signal Transmitter and EZiROD.
The GeoMax EZiTEX t100 signal transmitter is compact, robust and easy to use to generate ground frequencies.
The EZiTEX range of signal transmitters are dual frequency and have been designed in conjunction with the EZiCAT cable locators to easily and accurately avoid, trace or locate buried cables and pipes.
We would always recommend using a EZiTEX signal transmitter whenever you are trying to locate buried utilities.
Improved utility detection in areas of high signal interference.
Improved detection of inactive utilities such as street lights.
Enables depth estimation, when using a depth estimation cable locator.
Enables you to locate non-conductive utilities (e.g plastic, concrete etc) when used in conjunction with EZiSYSTEM accessories.
Using an EZiTEX signal transmitter will significantly improve the locate process and reduce utility damage.
GeoMax EZiTEX t100 Signal Transmitter Features:
Frequency / Mode8: kHz, 33 kHz and mixed 8/33 kHz
Protection: IP67 (case Lid closed); IP65 (case lid open)
Direct Connection (300 Ohms): Up to 1W max - connected to a buried service with an impedance of 300 Ohms
Induction: Up to 1W max
Batteries: 4 x D alkaline (IEC LR20 supplied)
Battery Life: 30 hours intermittent use (at 20°C)
Weight & Dimensions: 2.5 kg - 105mm (H) x 190mm (D) x 235mm (W)
