A guide to getting started with the GeoMax Network Rover Solution

These notes will cover:

  • How to use the Base Position Adjustment

To complete the above procedures, the following equipment is needed.

  • 2 X Zenith 16/40/60 which include radios

  • Field Controller with X-Pad Software

How to link the dataset to a control mark on a local site.

  • Once the Rover and Base has been configured

  • In the home page of X-Pad Ultimate, select  GNSS

  • Select co-ordinate system

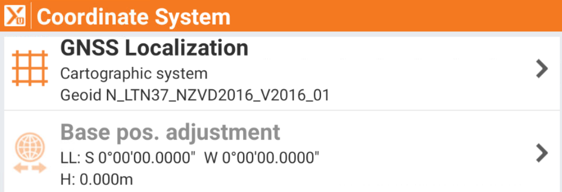

  • Select Base Position Adjustment

  • Select Measure

  • Select Measure Again

  • Select the GNSS Point Name (100M)

  • Select the next icon

  • Tap the orange ribbon and select the local point within the dataset

  • Select Next

  • Select Save
